Internal Thread Grinders
Grind internal threads up to 220mm
INTERNAL THREAD GRINDERS

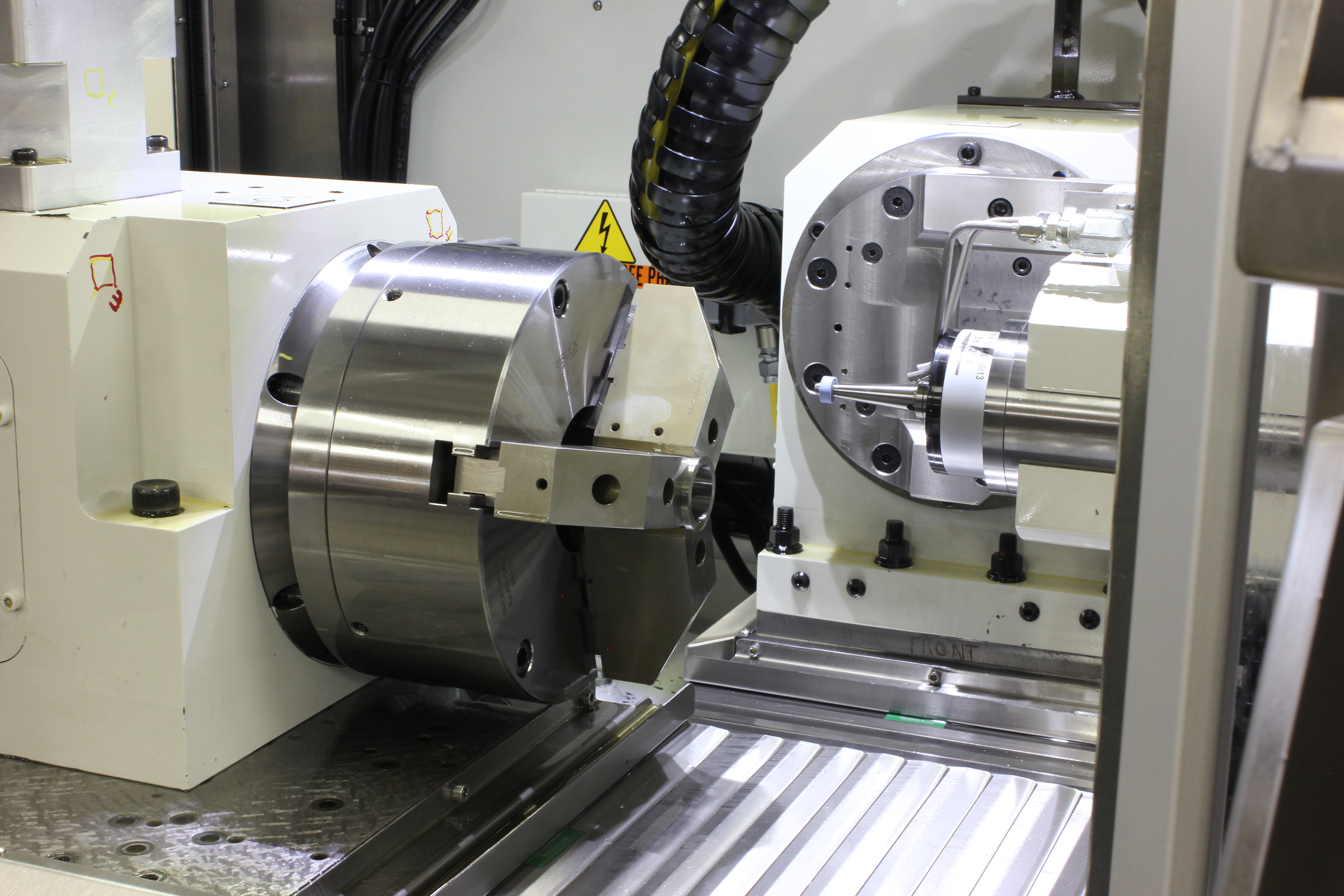

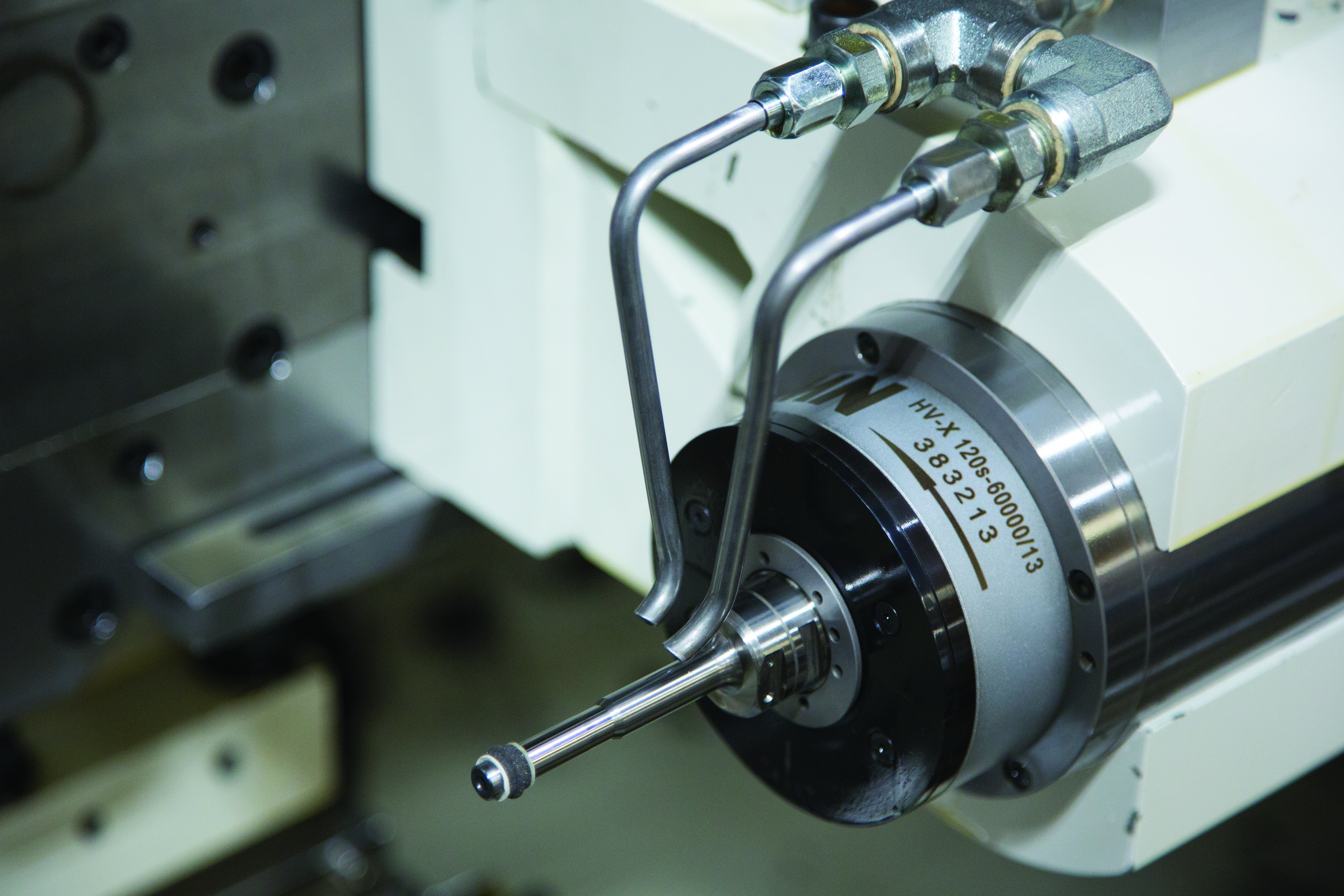

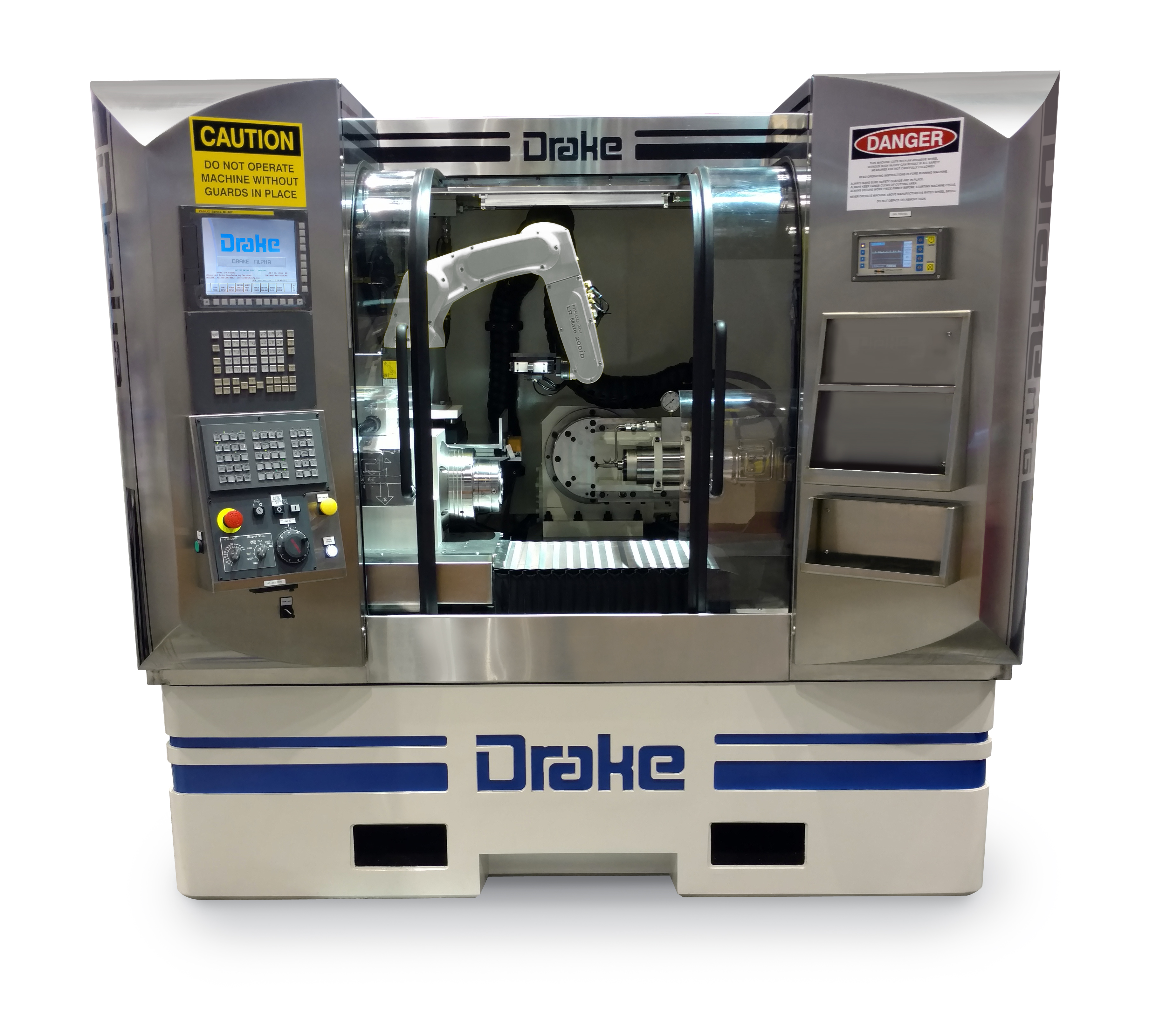

Drake GS:TI internal thread grinders are fully programmed and delivered with a grinding process optimized to run customers’ parts. The internal thread grinder is typically used when grinding ball nuts, thread gages, power steering components, and more.
MACHINE APPLICATIONS

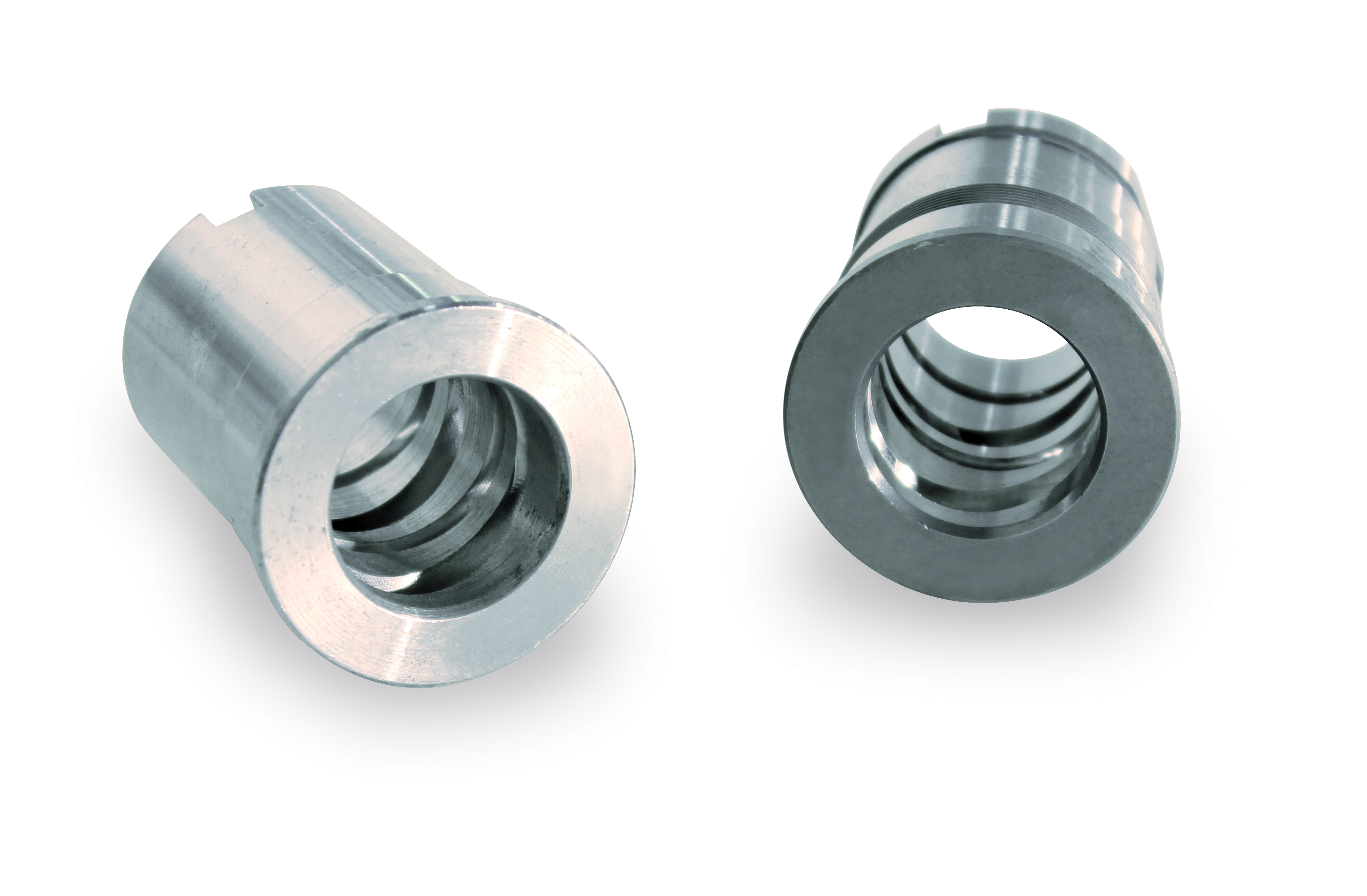

Ball Nuts
Thread Gages
Rolling Dies
